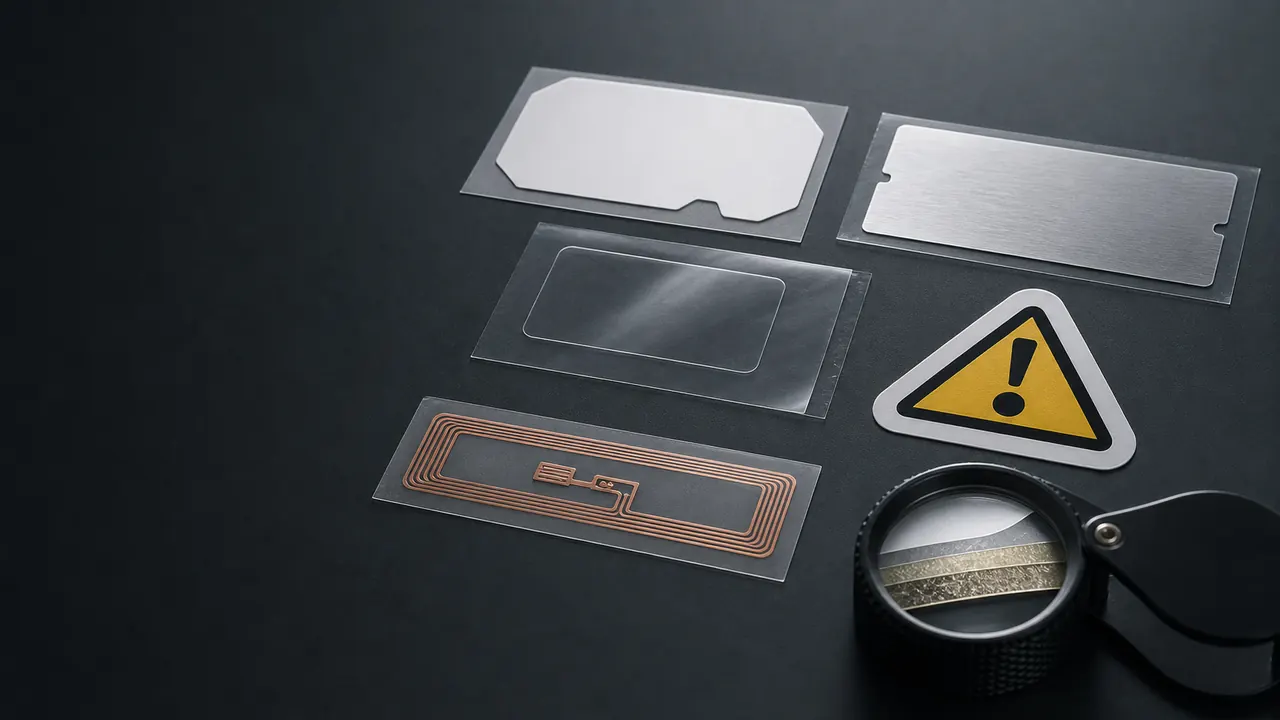

Conceptual durable label constructions, RFID inlay, clear film, foil, and warning-symbol label

PROCESS CONCEPT — NOT A FACILITY OR CUSTOMER INSTALLATION

MANUFACTURING PATH 06.1

Labels

Treat the label as a functional component—not the last unchecked item on the BOM.

REVIEW THE PATH

STARTING DECISION

What must the label communicate and survive?

Decoration, warning, information, or identification
Substrate, adhesive, surface, and geometry
Abrasion, chemical, UV, moisture, and temperature
Color, print method, serialization, inspection, and volume

PATH FAMILYOther Custom SolutionsPRIMARY INPUTDrawing + requirementsQUOTE FOCUSDelivered component scopeFinal fit depends on the actual geometry, material, volume, tooling, secondary operations, test, timing, and proposed manufacturing resource.

PROCESS FIT BEFORE PIECE PRICE

Make the manufacturing question explicit before routing the RFQ.

Label performance depends on the complete construction: face stock, ink, coating, adhesive, liner, application surface, environment, geometry, print method, finishing, and inspection.

Lupton helps organize the open questions so the proposed manufacturing resource can confirm process, capability, tooling, quality evidence, pricing, and lead time against the actual program.

Define the part

Start with geometry, material, interfaces, performance, volume, and timing.

Compare the path

Compare tooling, piece economics, secondary operations, change risk, and delivered scope.

Confirm the resource

Verify the facility, equipment, quality plan, capacity, test method, and responsible team.

CAPABILITY & RFQ SCOPE

Keep the process and delivered-part scope together.

Each card remains a starting point. The drawing and program requirements determine the actual manufacturing fit.

Function & information

Define what the label must do before selecting a print route.

Product decoration and brand presentation
Warning and informational labeling
Durable-goods identification
RFID and track-and-identify review

Construction & attachment

The adhesive and surface are part of the label system.

Film, foil, paper, plastic, and pressure-sensitive constructions
Surface energy, texture, curvature, and cleanliness
Temperature, chemical, moisture, UV, and abrasion exposure
Application method and dwell time

Printing & finishing

Match graphics and data requirements to the production and inspection plan.

Flexographic, screen, and digital production review
Die cutting, lamination, coating, and liner
Variable-data and on-demand printing
Color target, readability, inspection, packaging, and release quantity

APPLICATION & PROCESS EXAMPLES

Use visual context without turning an image into a capability claim.

Published photography is preserved where available. Concept visuals appear only on routes with a verified photography gap and are labeled accordingly.

Conceptual durable label constructions and RFID inlayCONCEPT VISUAL — NOT A FACILITY OR CUSTOMER INSTALLATION

Published specialty label applicationAPPLICATION EXAMPLE

RESOURCE & QUALITY GATE

Confirm the proposed resource and evidence before award.

Legacy equipment, certification, capacity, tolerance, savings, product-performance, and service-life claims are not treated as blanket Lupton capabilities. Verify them against the product and manufacturing resource actually quoted.

Verify before selection

01Proposed product, manufacturing resource, and responsible technical contact

02Current configuration, materials, interfaces, and operating limits

03Critical dimensions, functional acceptance criteria, and inspection plan

04Required testing, records, certifications, and traceability

05Secondary operations, packaging, installation, and service considerations

06Availability, release quantity, program timing, and change-control plan

MAKE THE RFQ EASIER TO ROUTE

Send the drawing and the requirements that change the manufacturing path.

Unknowns are acceptable. Label them so the next technical review resolves them instead of burying assumptions in a quote.

Helpful starting information

01Artwork, data fields, revision, and label function

02Finished size, shape, tolerances, and application method

03Face stock, adhesive, liner, and target surface

04Environment and required life

05Color, coating, variable data, RFID, and inspection needs

06Annual volume, release quantity, packaging, and timing

WANT TO DISCUSS THE PROJECT?

Review the part, open process questions, volume, tooling, timing, and current sourcing issue.

BOOK TIME WITH OUR TEAM

NOT SURE WHICH PATH FITS?

Start with the part and the requirement—not a process guess.

Lupton can help organize the drawing, material, volume, performance, timing, and open questions before the RFQ gets messy.
